When the image is clicked, the expansion image is displayed.
* The filters of NPX(5000μl & 10ML) are not compatible with NPXⅡ(5000μl & 10ML).
| Model | Cat. No | Parts | Q'ty | Remarks |
|---|---|---|---|---|

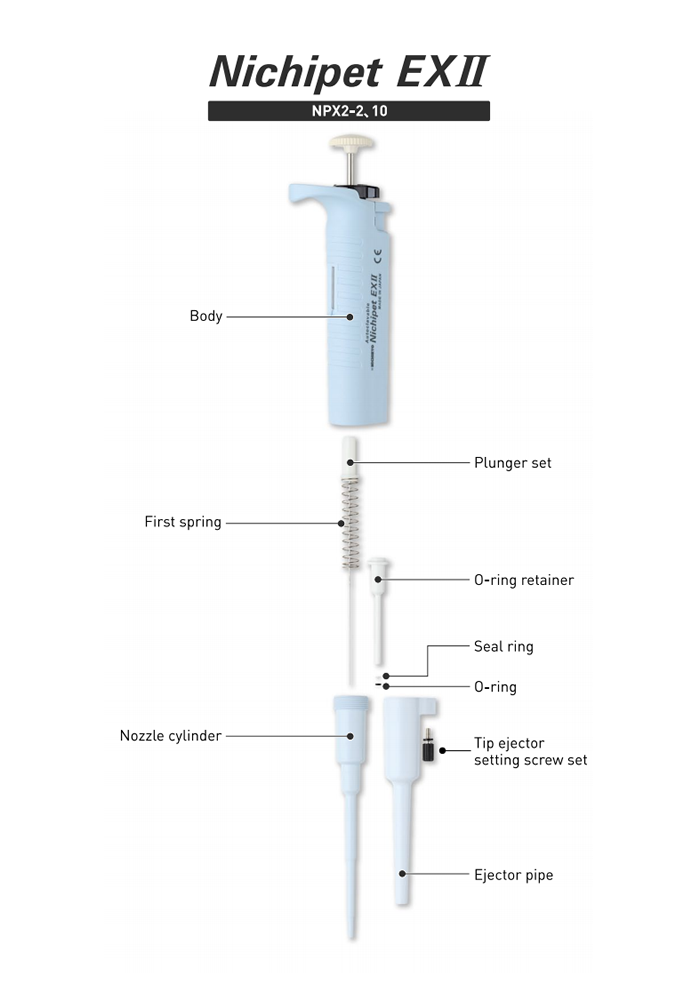

| NPXⅡ-2 | 00-NX2-0100002 | Plunger & Plunger Head | 1 | Plunger & plunger head |
| 00-NX2-0200002 | First spring | 1 | − | |
| 00-NX2-4000002 | Nozzle cylinder | 1 | Nozzle cylinder & K bush | |
| 00-NX2-4400002 | O-ring & seal ring set | 1 | − | |
| 00-NX2-0090001 | O-ring retainer | 1 | − | |
| 00-NX2-0900010 | Ejector pipe | 1 | − | |
| 00-NX2-0801000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPXⅡ-10 | 00-NX2-0100010 | Plunger head | 1 | Plunger & plunger head |
| 00-NX2-0200010 | First spring | 1 | − | |
| 00-NX2-4000010 | Nozzle cylinder | 1 | Nozzle cylinder & K bush | |
| 00-NX2-4400010 | O-ring & seal ring set | 1 | − | |
| 00-NX2-0090002 | O-ring retainer | 1 | − | |
| 00-NX2-0900010 | Ejector pipe | 1 | − | |
| 00-NX2-0801000 | Ejector setting screw | 1 | Screw, spring & washer | |

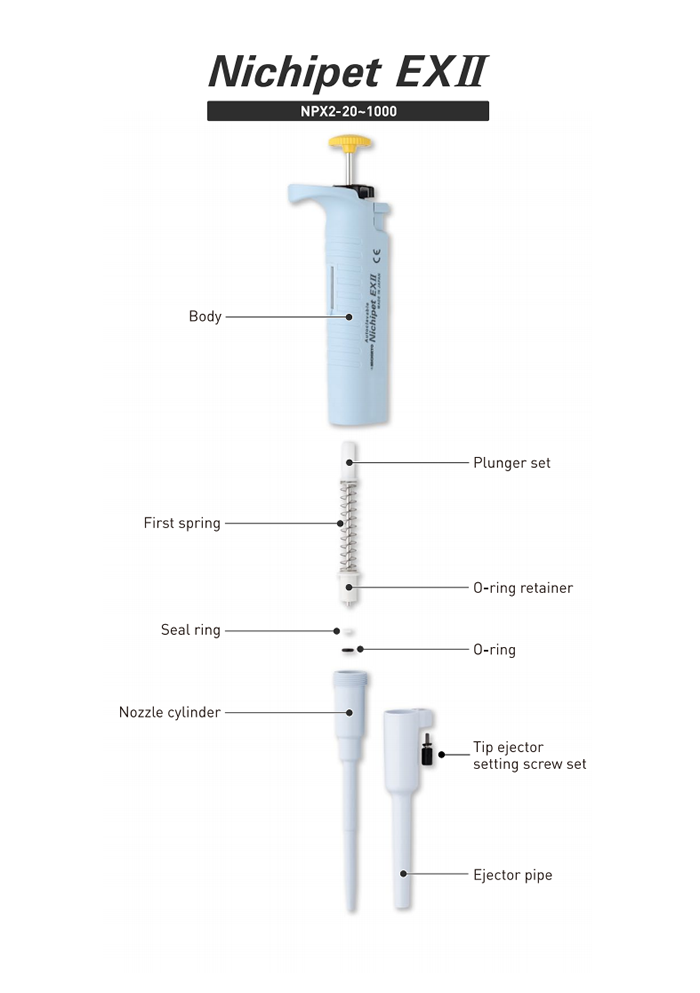

| NPXⅡ-20 | 00-NX2-0100020 | Plunger & plunger head | 1 | Plunger & plunger head |
| 00-NX2-0200020 | First spring | 1 | − | |
| 00-NX2-0400020 | Nozzle cylinder | 1 | Nozzle cylinder & K bush | |
| 00-NX2-4400020 | O-ring & seal ring set | 1 | O-ring+Seal ring+O-ring retainer | |
| 00-NX2-0090003 | O-ring retainer | 1 | − | |
| 00-NX2-0900200 | Ejector pipe | 1 | − | |
| 00-NX2-0801000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPXⅡ-100 | 00-NX2-0100100 | Plunger & plunger head | 1 | Plunger & Plunger head |
| 00-NX2-0200100 | First spring | 1 | − | |
| 00-NX2-0400100 | Nozzle cylinder | 1 | − | |
| 00-NX2-4400100 | O-ring & seal ring set | 1 | − | |
| 00-NX2-0090004 | O-ring retainer | 1 | − | |
| 00-NX2-0900200 | Ejector pipe | 1 | − | |
| 00-NX2-0801000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPXⅡ-200 | 00-NX2-0100200 | Plunger head | 1 | Plunger & Plunger head |
| 00-NX2-0200200 | First spring | 1 | − | |
| 00-NX2-0400200 | Nozzle cylinder | 1 | − | |
| 00-NX2-4400200 | O-ring & seal ring set | 1 | − | |
| 00-NX2-0090005 | O-ring retainer | 1 | − | |
| 00-NX2-0900200 | Ejector pipe | 1 | − | |
| 00-NX2-0801000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPXⅡ-1000 | 00-NX2-0101000 | Plunger & plunger head | 1 | Plunger & plunger head |
| 00-NX2-0201000 | First spring | 1 | − | |
| 00-NX2-0401000 | Nozzle cylinder | 1 | − | |
| 00-NX2-4401000 | O-ring & seal ring set | 1 | − | |
| 00-NX2-0090006 | O-ring retainer | 1 | − | |
| 00-NX2-0901000 | Ejector pipe | 1 | − | |
| 00-NX2-0801000 | Ejector setting screw | 1 | Screw, spring & washer | |
| 00-NX2-0601000 | Nozzle filter | 10 | − | |
| 00-NX2-1100000 | Nozzle filter remover | 1 | − | |

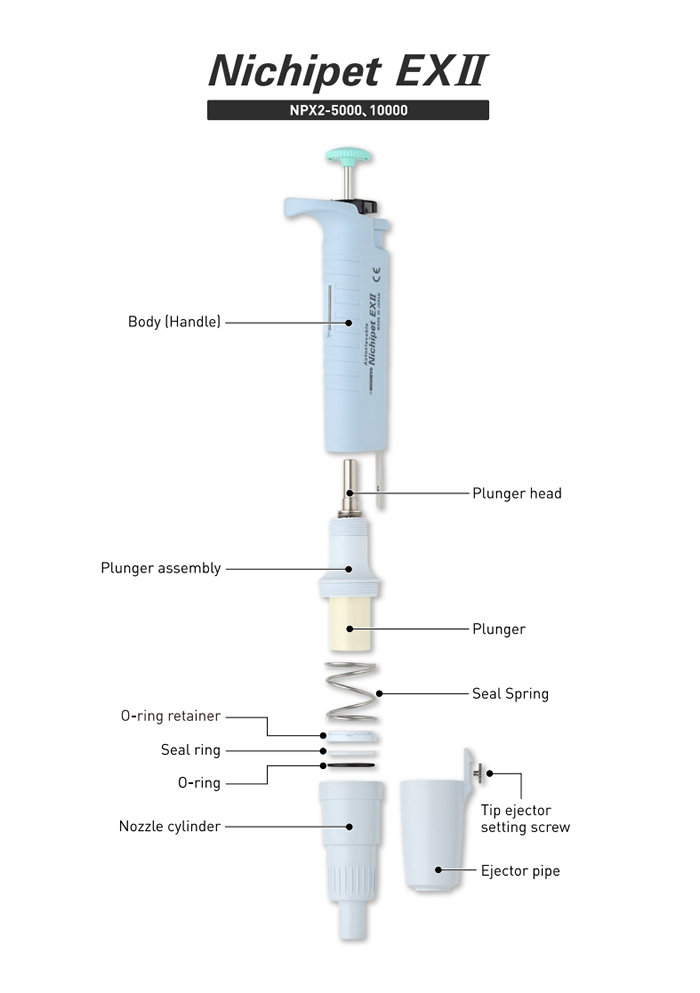

| NPXⅡ-5000 | 00-NX2-0105000P | Plunger & plunger head | 1 | Plunger & plunger head |
| 00-NX2-0105000GP | 1 | |||
| 00-NX2-0205000 | First spring | 1 | − | |
| 00-NX2-0405000 | Nozzle cylinder | 1 | − | |
| 00-NX2-0405000G | 1 | − | ||
| 00-NX2-4405000 | O-ring & seal ring set | 1 | − | |
| 00-NX2-4405000G | 1 | − | ||
| 00-NX2-0090007 | O-ring retainer | 1 | − | |
| 00-NX2-2205000 | Seal Spring | 1 | − | |
| 00-NX2-0905000 | Ejector pipe | 1 | − | |
| 00-NX2-0815000 | Ejector setting screw | 1 | − | |
| 00-NX2-0615000 | Nozzle filter | 100 | − | |
| 00-NX2-1500000 | Nozzle filter remover | 1 | − | |
| NPXⅡ-10ML | 00-NX2-0110000P | Plunger & plunger head | 1 | Plunger & plunger head |
| 00-NX2-0210000 | First spring | 1 | − | |
| 00-NX2-0410000 | Nozzle cylinder | 1 | − | |
| 00-NX2-0410000G | 1 | − | ||
| 00-NX2-0510000 | O-ring・Seal ring・O-ring retainer | 1 | O-ring + Seal ring + O-ring retainer | |
| 00-NX2-2210000 | Seal Spring | 1 | − | |
| 00-NX2-0910000 | Ejector pipe | 1 | − | |
| 00-NX2-0815000 | Ejector setting screw | 1 | − | |
| 00-NX2-0615000 | Nozzle filter | 100 | − | |
| 00-NX2-1500000 | Nozzle filter remover | 1 | − | |
| All Models | 00-NX2-0090010 | JIG to remove the second spring holder | 1 | − |
| 00-NX2-0090009 | Hex head wrench for calibration | 1 | − |
