PIPETTE / DISPENSER / CUSTOM MADE & OEM
When the image is clicked, the expansion image is displayed.
Model | Cat. No | Parts | Q'ty |
---|---|---|---|

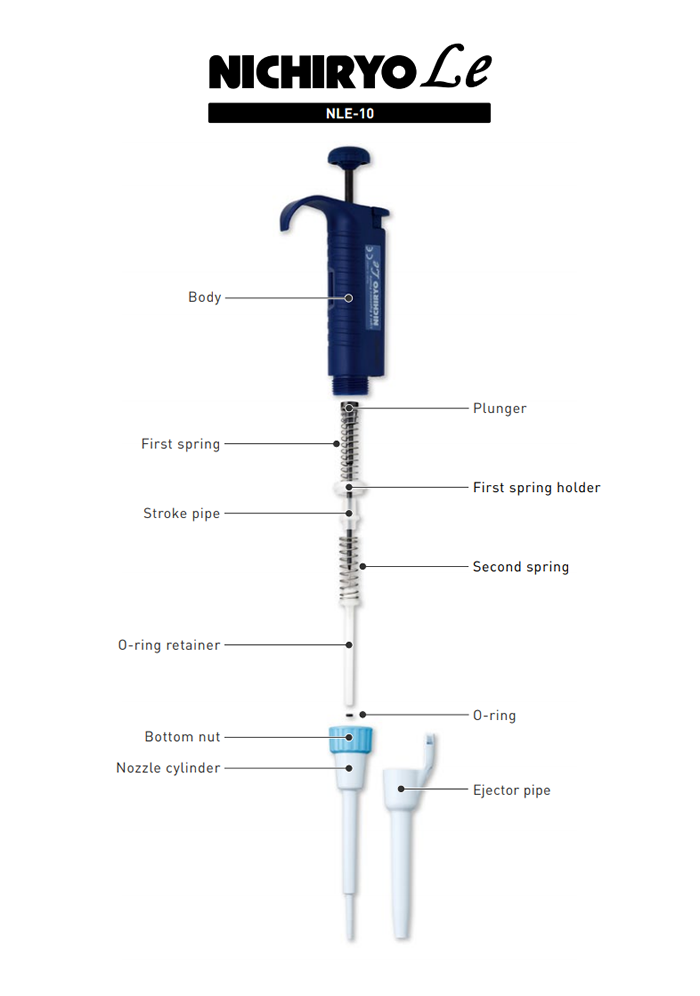

NLE-10 | 00-NPE-017A | Plunger | 1 |
00-NPE-018A | Stroke ring | 1 | |
00-NPE-019A | First spring | 1 | |
00-NPE-020A | First spring holder | 1 | |
00-NPE-021A | O-ring retainer | 1 | |
00-NPE-022A | O-ring | 1 | |
00-NPE-023A | Second spring | 1 | |
00-NPE-024A | Nozzle cylinder | 1 | |
00-NPE-025A | Ejector pipe | 1 | |

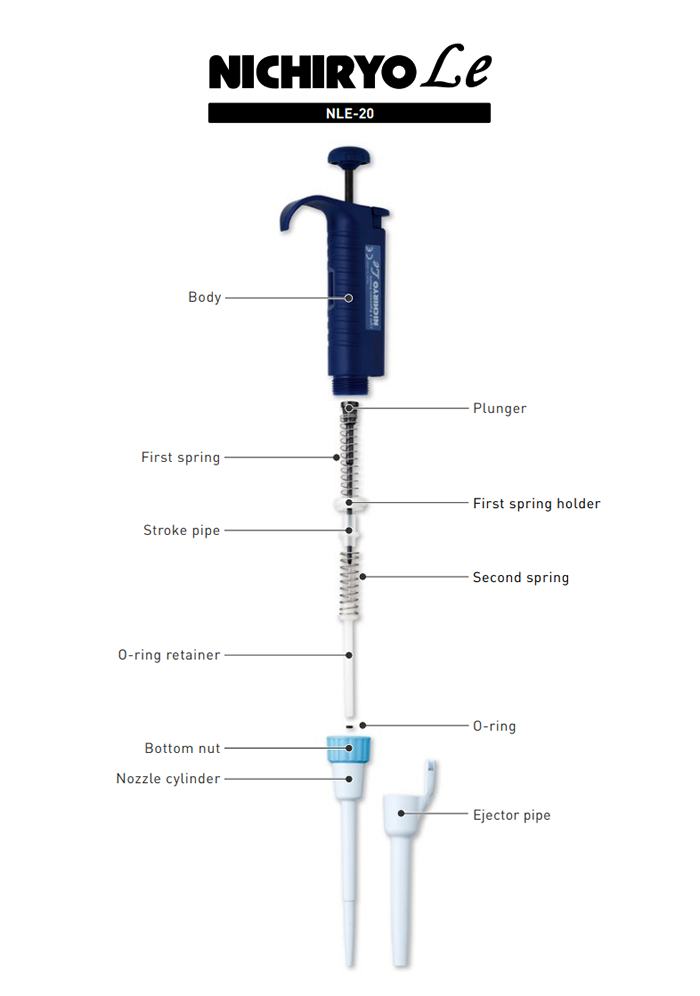

NLE-20 | 00-NPE-017B | Plunger | 1 |
00-NPE-018A | Stroke ring | 1 | |
00-NPE-019B | First spring | 1 | |
00-NPE-020A | First spring holder | 1 | |
00-NPE-021B | O-ring retainer | 1 | |
00-NPE-022B | O-ring | 1 | |
00-NPE-023A | Second spring | 1 | |
00-NPE-024B | Nozzle cylinder | 1 | |
00-NPE-025B | Ejector pipe | 1 | |

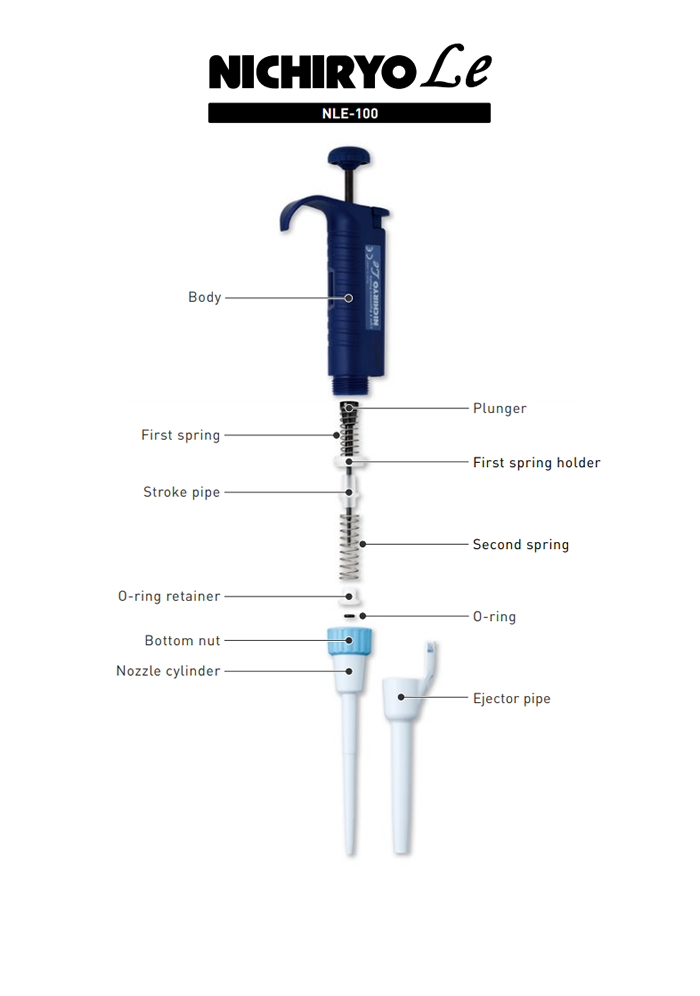

NLE-100 | 00-NPE-017C | Plunger | 1 |
00-NPE-018A | Stroke ring | 1 | |
00-NPE-019C | First spring | 1 | |
00-NPE-020A | First spring holder | 1 | |
00-NPE-021C | O-ring retainer | 1 | |
00-NPE-022C | O-ring | 1 | |
00-NPE-023A | Second spring | 1 | |
00-NPE-024C | Nozzle cylinder | 1 | |
00-NPE-025B | Ejector pipe | 1 | |

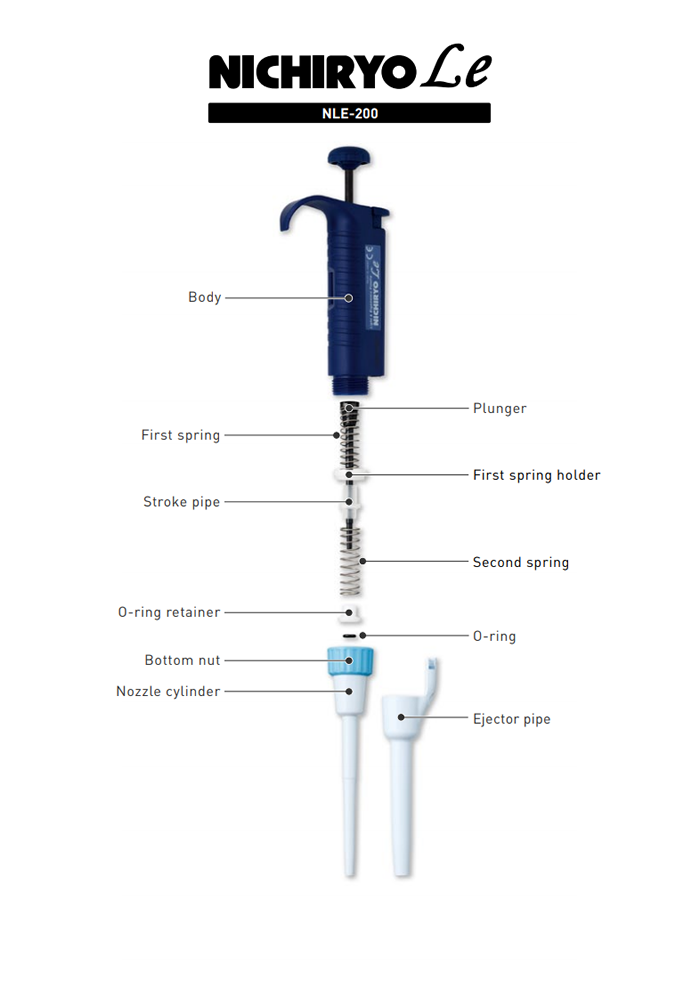

NLE-200 | 00-NPE-017D | Plunger | 1 |
00-NPE-018A | Stroke ring | 1 | |
00-NPE-019C | First spring | 1 | |
00-NPE-020A | First spring holder | 1 | |
00-NPE-021D | O-ring retainer | 1 | |
00-NPE-022D | O-ring | 1 | |
00-NPE-023A | Second spring | 1 | |
00-NPE-024D | Nozzle cylinder | 1 | |
00-NPE-025B | Ejector pipe | 1 | |
NLE-1000 | 00-NPE-017E | Plunger | 1 |
00-NPE-018B | Stroke ring | 1 | |
00-NPE-019D | First spring | 1 | |
00-NPE-020B | First spring holder | 1 | |
00-NPE-021E | O-ring retainer | 1 | |
00-NPE-022E | O-ring | 1 | |
00-NPE-023B | Second spring | 1 | |
00-NPE-024E | Nozzle cylinder | 1 | |
00-NPE-025C | Ejector pipe | 1 | |
All models | 00-NPE-030 | Bottom nut | 1 |
00-N3-0711A | Silicon grease | 1 |
