PIPETTE / DISPENSER / CUSTOM MADE & OEM
PIPETTE / DISPENSER / CUSTOM MADE & OEM
When the image is clicked, the expansion image is displayed.

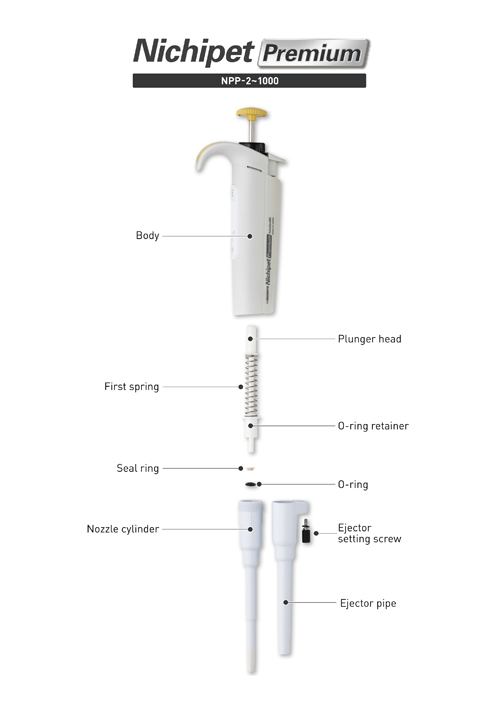

| Model | Cat. No | Parts | Q'ty | Remarks |
|---|---|---|---|---|
| NPP-2 | 00-NP-0100002 | Plunger head | 1 | Plunger+Plunger head |
| 00-NP-0200002 | First spring | 1 | − | |
| 00-NP-0400002 | Nozzle cylinder set | 1 | Nozzle cylinder+O-ring +Seal ring+O-ring retainer |
|
| 00-NP-0900010 | Ejector pipe | 1 | − | |
| 00-NP-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NPP-10 | 00-NP-0100010 | Plunger head | 1 | Plunger+Plunger head |
| 00-NP-0200010 | First spring | 1 | − | |
| 00-NP-0400010 | Nozzle cylinder set | 1 | Nozzle cylinder+O-ring +Seal ring+O-ring retainer |
|
| 00-NP-0900010 | Ejector pipe | 1 | − | |
| 00-NP-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NPP-20 | 00-NP-0100020 | Plunger head | 1 | Plunger+Plunger head |
| 00-NP-0200020 | First spring | 1 | − | |
| 00-NP-0400020 | Nozzle cylinder set | 1 | Nozzle cylinder+O-ring +Seal ring+O-ring retainer |
|
| 00-NP-0900200 | Ejector pipe | 1 | − | |
| 00-NP-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NPP-100 | 00-NP-0100100 | Plunger head | 1 | Plunger+Plunger head |
| 00-NP-0200100 | First spring | 1 | − | |
| 00-NP-0400100 | Nozzle cylinder | 1 | − | |
| 00-NP-0500100 | O-ring・Seal ring set | 1 | O-ring+Seal ring+O-ring retainer | |
| 00-NP-0900200 | Ejector pipe | 1 | − | |
| 00-NP-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NPP-200 | 00-NP-0100200 | Plunger head | 1 | Plunger+Plunger head |
| 00-NP-0200200 | First spring | 1 | − | |
| 00-NP-0400200 | Nozzle cylinder | 1 | − | |
| 00-NP-0500200 | O-ring・Seal ring set | 1 | O-ring+Seal ring+O-ring retainer | |
| 00-NP-0900200 | Ejector pipe | 1 | − | |
| 00-NP-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NPP-1000 | 00-NP-0101000 | Plunger head | 1 | Plunger+Plunger head |
| 00-NP-0201000 | First spring | 1 | − | |
| 00-NP-0401000 | Nozzle cylinder | 1 | − | |
| 00-NP-0501000 | O-ring・Seal ring set | 1 | O-ring+Seal ring+O-ring retainer | |
| 00-NP-0901000 | Ejector pipe | 1 | ||
| 00-NP-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| 00-NP-0601000 | Nozzle filter | 10 | ||
| 00-NP-1100000 | Treatment device that detaches filter | 1 | ||

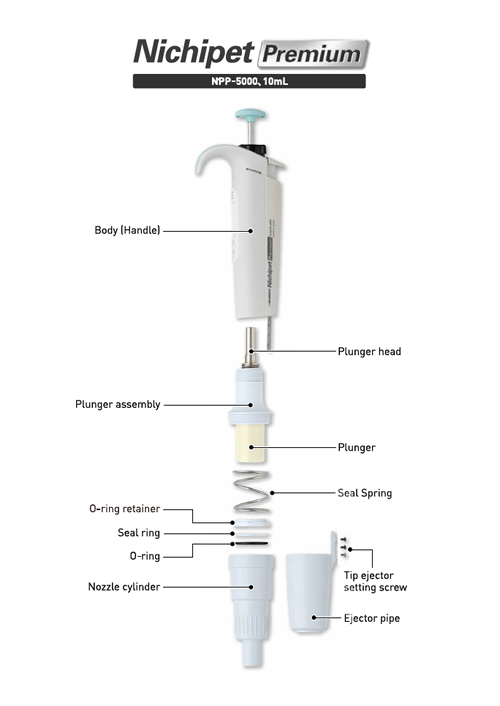

| NPP-5000 | 00-NP-01050NP | Body and Nozzle connector (Before Oct. 1st, 2011) |
1 | Plunger+Collaboration block+ Collaboration plate+ Collaboration shaft+ Plunger head+Screw+ First spring+Body |
| 00-NP-0105000PS | Body and Nozzle connector (After Oct. 1st, 2011) |
|||
| 00-NP-040500N | Nozzle cylinder (Before Oct. 1st, 2011) |
1 | Nozzle cylinder | |
| 00-NP-0405000S | Nozzle cylinder (After Oct. 1st, 2011) | − | ||
| 00-NP-0505000 | O-ring・Seal ring set | 1 | O-ring +Seal ring | |
| 00-NP-090500N | Ejector pipe (Before Oct. 1st, 2011) | 1 | − | |
| 00-NP-0905000S | Ejector pipe (After Oct. 1st, 2011) | |||
| 00-NP-081500N | Ejector setting screw (Before Oct. 1st, 2011) |
3 | − | |
| 00-NP-0815000 | Ejector setting screw (After Oct. 1st, 2011) |
1 | ||
| NX-065000 | Nozzle filter (Before Oct. 1st, 2011) | 100 | − | |
| 00-NP-0605000 | Nozzle filter (After Oct. 1st, 2011) | 1 | − | |
| 00-NX2-0615000 | ||||
| 00-NP-2205000B | Seal Spring (After Oct. 1st, 2011) | 1 | − | |
| 00-NP-1500000 | Treatment device that detaches filter | 1 | − | |
| NPP-10000 | 00-NP-01100NP | Body and Nozzle connector (Before Oct. 1st, 2011) |
1 | Plunger+Collaboration block+ Collaboration plate+ Collaboration shaft+ Plunger head+Screw+ First spring+Body |
| 00-NP-0110000PS | Body and Nozzle connector (After Oct. 1st, 2011) |
|||
| 00-NP-041000N | Nozzle cylinder (Before Oct. 1st, 2011) |
1 | Nozzle cylinder | |
| 00-NP-0410000S | Nozzle cylinder (After Oct. 1st, 2011) | − | ||
| 00-NP-051000N | O-ring・Seal ring・O-ring retainer | 1 | O-ring + Seal ring + O-ring retainer | |
| 00-NP-0271000 | Nozzle O-ring | 1 | − | |
| 00-NP-091000N | Ejector pipe (Before Oct. 1st, 2011) |
1 | − | |
| 00-NP-0910000S | Ejector pipe (After Oct. 1st, 2011) |
|||
| 00-NP-081500N | Ejector setting screw (Before Oct. 1st, 2011) |
4 | − | |
| 00-NP-0815000 | Ejector setting screw (Before Oct. 1st, 2011) |
1 | ||
| 00-NP-0610000 | Nozzle filter (Before Oct. 1st, 2011) | 100 | − | |
| 00-NP-0615000 | Nozzle filter (After Oct. 1st, 2011) | |||
| 00-NP-2210000B | Seal Spring (After Oct. 1st, 2011) | 1 | − | |
| 00-NP-1500000 | Treatment device that detaches filter | 1 | − | |
| All models | 00-NP-1600000 | Capacity adjustment treatment device | 1 | − |
