PIPETTE / DISPENSER / CUSTOM MADE & OEM
PIPETTE / DISPENSER / CUSTOM MADE & OEM
This product was discontinued at the end of September 2023.
Compatible tips, tip racks, stands, spare parts,
and consumables will continue to be available until September 2029.

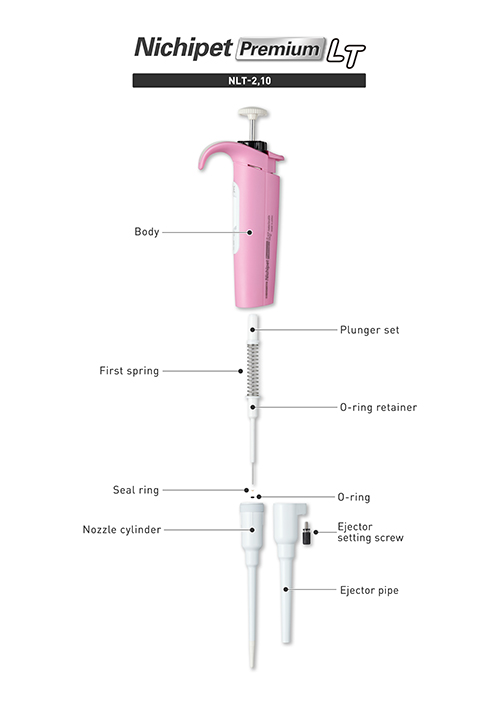

When the image is clicked, the expansion image is displayed.
| Cat.No | Parts | Q'ty | Remarks | |
|---|---|---|---|---|
| NLT-2 | 00-NLT-0100002 | Plunger head | 1 | Plunger+Plunger head |
| 00-NLT-0200002 | First spring | 1 | ||
| 00-NLT-0400002 | Nozzle cylinder set | 1 | Nozzle cylinder+O-ring+Seal ring+O-ring retainer | |
| 00-NLT-0900010 | Ejector pipe | 1 | ||
| 00-NLT-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NLT-10 | 00-NLT-0100010 | Plunger head | 1 | Plunger+Plunger head |
| 00-NLT-0200010 | First spring | 1 | ||
| 00-NLT-0400010 | Nozzle cylinder set | 1 | Nozzle cylinder+O-ring+Seal ring+O-ring retainer | |
| 00-NLT-0900010 | Ejector pipe | 1 | ||
| 00-NLT-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NLT-20 | 00-NLT-0100020 | Plunger head | 1 | Plunger+Plunger head |
| 00-NLT-0200020 | First spring | 1 | ||
| 00-NLT-2300020 | First spring holder | 1 | ||
| 00-NLT-2200020 | O-ring retainer | 1 | ||
| 00-NLT-0400020 | Nozzle cylinder set | 1 | Nozzle cylinder+O-ring+Seal ring+O-ring retainer | |
| 00-NLT-0900200 | Ejector pipe | 1 | ||
| 00-NLT-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NLT-100 | 00-NLT-0100100 | Plunger head | 1 | Plunger+Plunger head |
| 00-NLT-0200100 | First spring | 1 | ||
| 00-NLT-2300100 | First spring holder | 1 | ||
| 00-NLT-2200100 | O-ring retainer | 1 | ||
| 00-NLT-0400100 | Nozzle cylinder set | 1 | ||
| 00-NLT-0500100 | O-ring・Seal ring set | 1 | O-ring+O-ring retainer | |
| 00-NLT-0900200 | Ejector pipe | 1 | ||
| 00-NLT-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NLT-200 | 00-NLT-0100200 | Plunger head | 1 | Plunger+Plunger head |
| 00-NLT-0200200 | First spring | 1 | ||
| 00-NLT-2300200 | First spring holder | 1 | ||
| 00-NLT-2200200 | O-ring retainer | 1 | ||
| 00-NLT-0400200 | Nozzle cylinder set | 1 | ||
| 00-NLT-0500200 | O-ring・Seal ring set | 1 | O-ring+O-ring retainer | |
| 00-NLT-0900200 | Ejector pipe | 1 | ||
| 00-NLT-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| NLT-1000 | 00-NLT-0101000 | Plunger head | 1 | Plunger+Plunger head |
| 00-NLT-0201000 | First spring | 1 | ||
| 00-NLT-2301000 | First spring holder | 1 | ||
| 00-NLT-2201000 | O-ring retainer | 1 | ||
| 00-NLT-0401000 | Nozzle cylinder set | 1 | ||
| 00-NLT-0501000 | O-ring・Seal ring set | 1 | O-ring+O-ring retainer | |
| 00-NLT-0901000 | Ejector pipe | 1 | ||
| 00-NLT-0801000 | Ejector setting screw | 1 | Screw+Spring+Washer | |
| All models | 00-NLT-1600000 | Capaciry adjustment treatment device | 1 | |
| 00-NLT-3400000 | Grease | 1 | ||
